FS-80 – Form Series Downpipes

80mm diameter round downpipe.

The reliable downpipe option for your rainwater system.

The FS-80 downpipe provides increased water capacity for a complete rainwater installation you can trust. Part of our Form Series, the FS-80 is a roll-formed lock seamed downpipe. This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Use Ezi-Flo Series downpipe where charged downpipes are required.

Specifier Notes

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water. A large range of accessories are available for our FS-80 downpipes. 95°, 45° & 30° bends, spreader tees, junction tees & joiners.
Note: Copper material is hand cut and mitered, with a welded option available in some locations.

Want to know more?
Give us a call:

0800 501 993

FS-80 Downpipe Enquiry

Name

First Name

Last Name

Email

Phone Number

Address

Suburb

City / Town

Tell us about your project

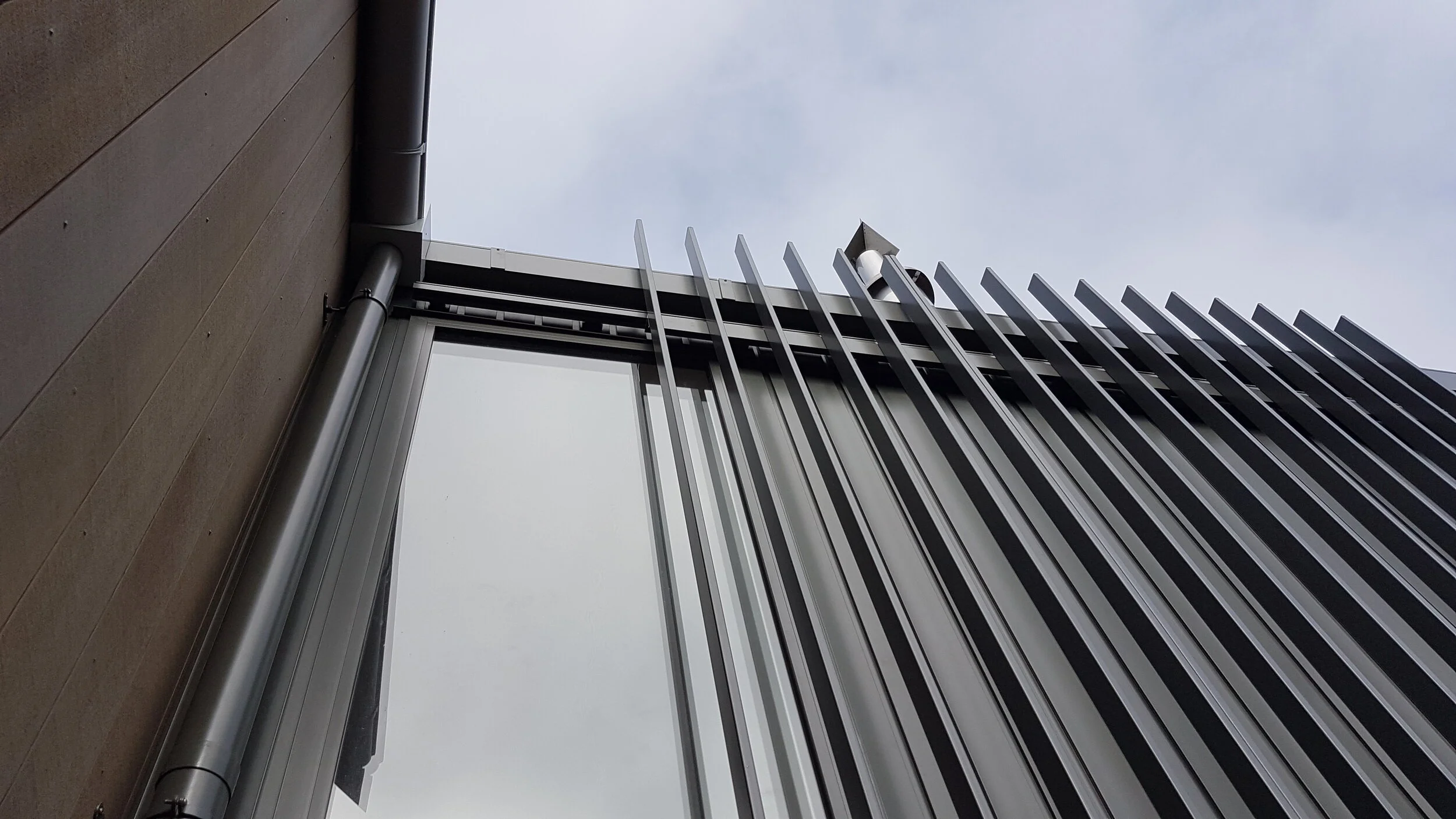

Scroll down to see images of Continuous downpipes on a range of Kiwi homes, along with colour and finish options and downloadable technical files.

Downpipe

Clip Bracket

Munzing Ring

Quick Reference Data

FS-80 - Form Series Downpipe

Capacity

5020mm2

Inside
Diameter

80mm

Outside
Diameter

81.2mm

Finish
Availability

CG Range
Designer Range
Natural Copper

Material
Availability

MagnaFlow
Copper

Bracket
Material

MagnaFlow
Diecast Aluminium
Brass or Copper

Bracket
Types

Adjustable Clamp
Fixed Clip*

*Fixed Clip not available in Designer Range finish.

FS-80 Downpipe Colour & Finish Options

Our FS-80 downpipes are available in the following finish & colour options. (Click for more information.)

CG Range

Designer Range

Copper

CG Range – Colours

The “CG Range” features our most popular 15 colours, all manufactured from New Zealand made, MagnaFlow pre-painted steel. Colour options for the CG Range are shown below.

Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.
