EF-100 – EZI-FLO Series Downpipes
100mm diameter extruded aluminium downpipe.
Extruded aluminium downpipes with huge rainwater collection capacity.
The EF-100 downpipe provides a highly durable downpipe with maximum water capture capcity. As with all of our EZI-FLO Series, the EF-100 is an extruded aluminium downpipe which can be powdercoated in any one of 60 colours. With its larger capacity, it is ideal for water collection and when large roof catchment areas are essential.
Specifier Notes
Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.
All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water. A large range of accessories are available for our EF-100 downpipes. 95° & 30° bends, spreader tees, junction tees & joiners.
Scroll down to see images of Continuous downpipes on a range of Kiwi homes, along with colour and finish options and downloadable technical files.
Downpipe product
Adjustable clamp bracket on downpipe
Downpipe Fittings
95 degree bend
95 degree tee
90 degree spreader tee
100mm joiner
30 degree bend
Quick Reference Data
EF-100 - EZI-FLO Series Downpipe
Capacity
7694mm2
Inside
Diameter
99mm
Outside
Diameter
102.8mm
Colour
Availability
Over 60 powdercoat colours
Material
1.9mm
6060 T5 Aluminium
Bracket
Material
Diecast Aluminium
Bracket
Types
Adjustable Clamp
EF-100 Downpipe Colour Options
Our EF-100 downpipes are available in over 60 colour options, including the colour options listed in our “CG Range” and “Designer Range”
CG Range – Colours
The “CG Range” features our most popular 15 colours. Colour options for the CG Range are shown below.
Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.
EF-100 Downpipes Image Gallery
Image gallery may show different round diameter downpipe sizes.
Technical Information & Downloads

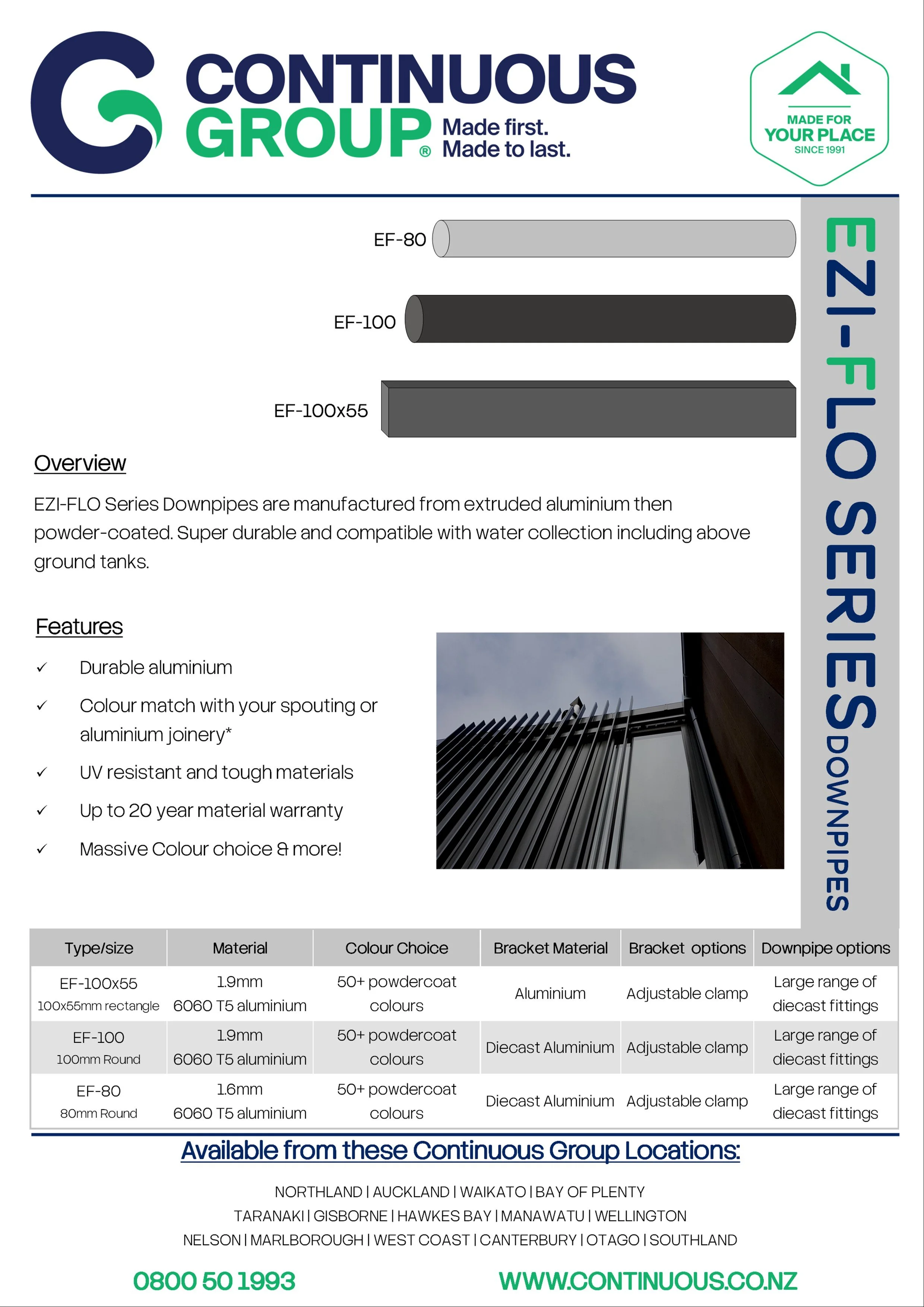

EZI-FLO Series
Downpipe Brochure
Click to view and download.

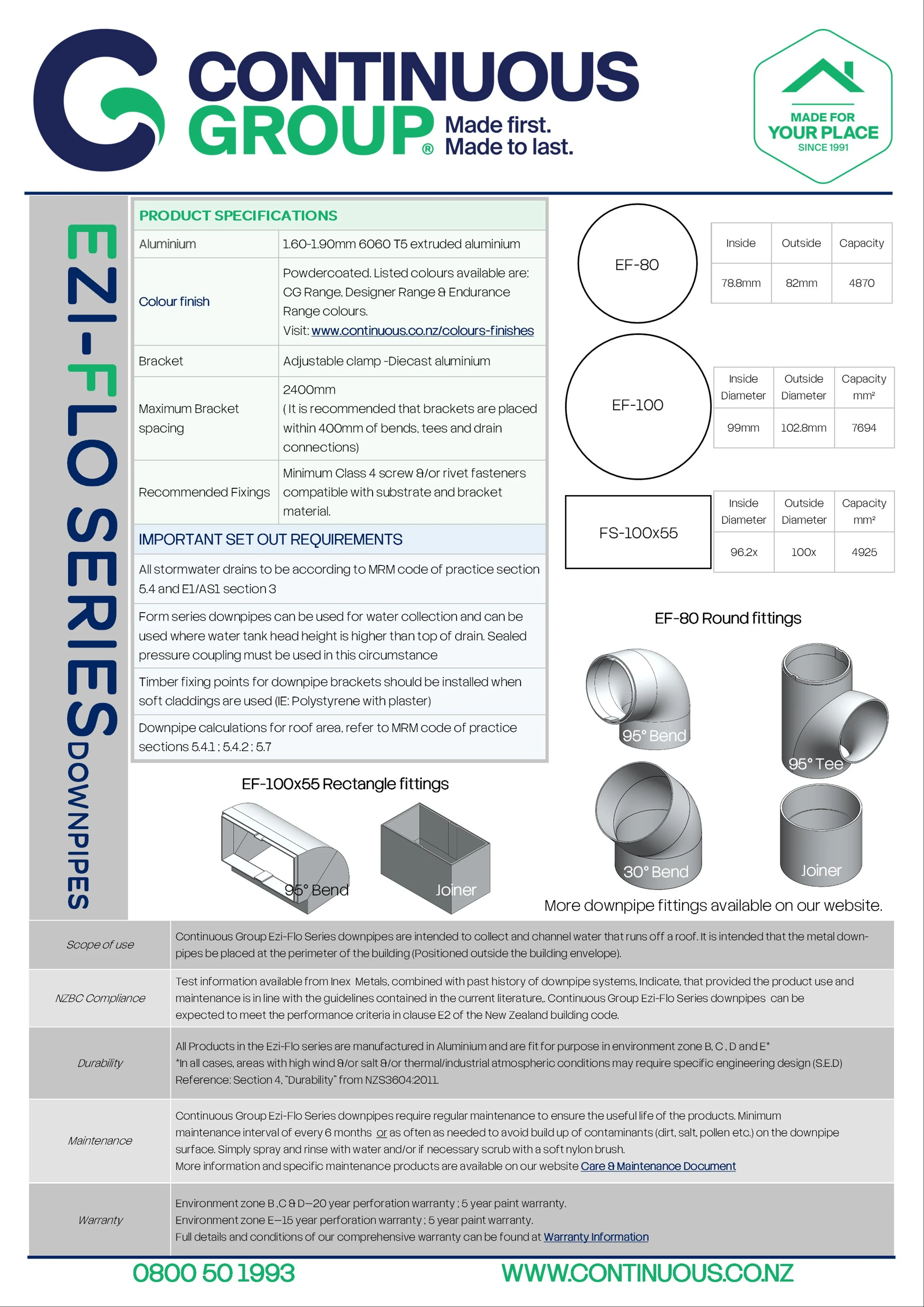

EZI-FLO Series
Specification Sheet
Click to view and download
EZI-FLO Series Combined
Brochure & Spec Sheet
Click to view and download.
