EF-80 – EZI-FLO Series Downpipes
80mm diameter extruded aluminium downpipe.
Extruded aluminium downpipes are ideal for rainwater collection.
The EF-80 downpipe provides a highly durable finishing touch to our quality rainwater systems. Part of our EZI-FLO Series, the EF-80 is an extruded aluminium downpipe which is great if you are in a high salt area, They can be powdercoated in any one of 60 colours. This product is ideal for water collection, as it can be used where water tank head height is higher than top of drain.
Specifier Notes
Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.
All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water. A large range of accessories are available for our EF-80 downpipes. 95°, 45° & 30° bends, spreader tees, junction tees & joiners.
Scroll down to see images of Continuous downpipes on a range of Kiwi homes, along with colour and finish options and downloadable technical files.

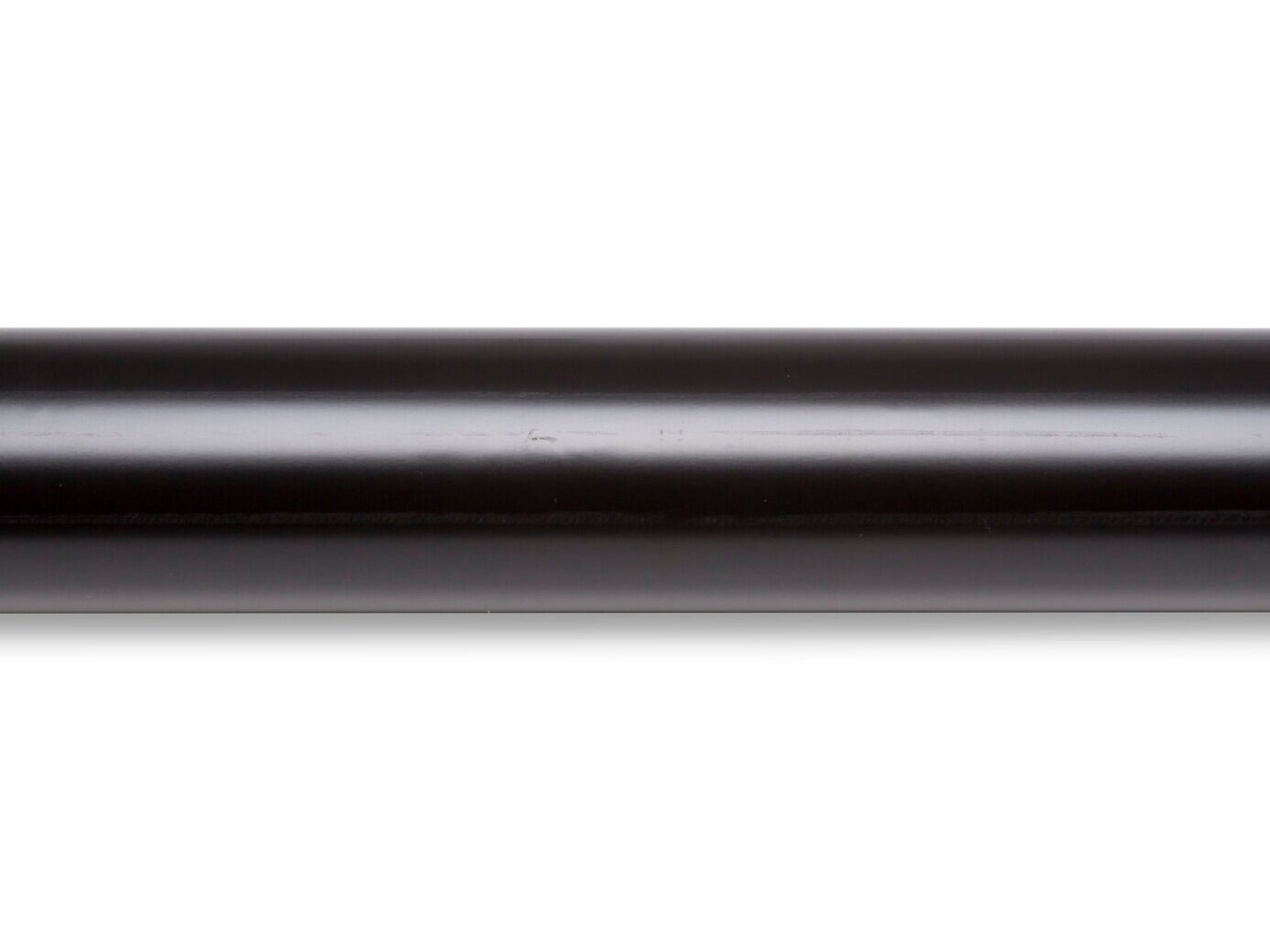

Downpipe product

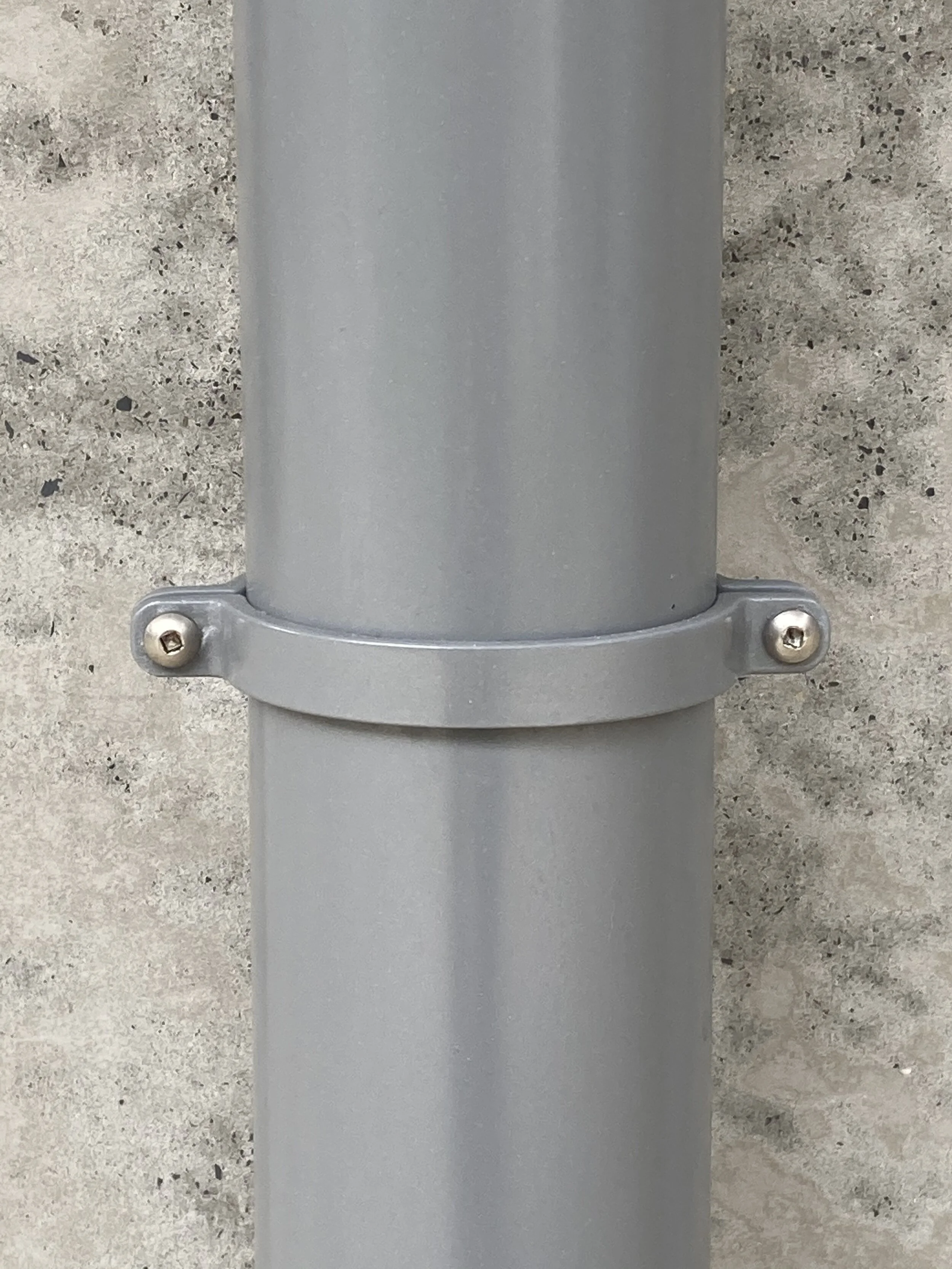

Adjustable clamp bracket on downpipe
Downpipe Fittings
95 degree bend
45 degree bend
30 degree bend
95 degree Tee
90 degree spreader tee
80mm joiner
End caps
Quick Reference Data
EF-80 - EZI-FLO Series Downpipe
Capacity
4870mm2
Inside
Diameter
78.8mm
Outside
Diameter
82mm
Colour
Availability
Over 60 powdercoat colours
Material
1.6mm
6060 T5 Aluminium
Bracket
Material
Diecast Aluminium
Bracket
Types
Adjustable Clamp
EF-80 Downpipe Colour Options
Our EF-80 downpipes are available in over 60 colour options, including the colour options listed in our “CG Range” and “Designer Range”
CG Range – Colours
The “CG Range” features our most popular 15 colours. Colour options for the CG Range are shown below.
Please note, colours shown below are as accurate as we can make them via a digital rendering, but actual colours may vary. For exact colour samples, please get in touch with our team.

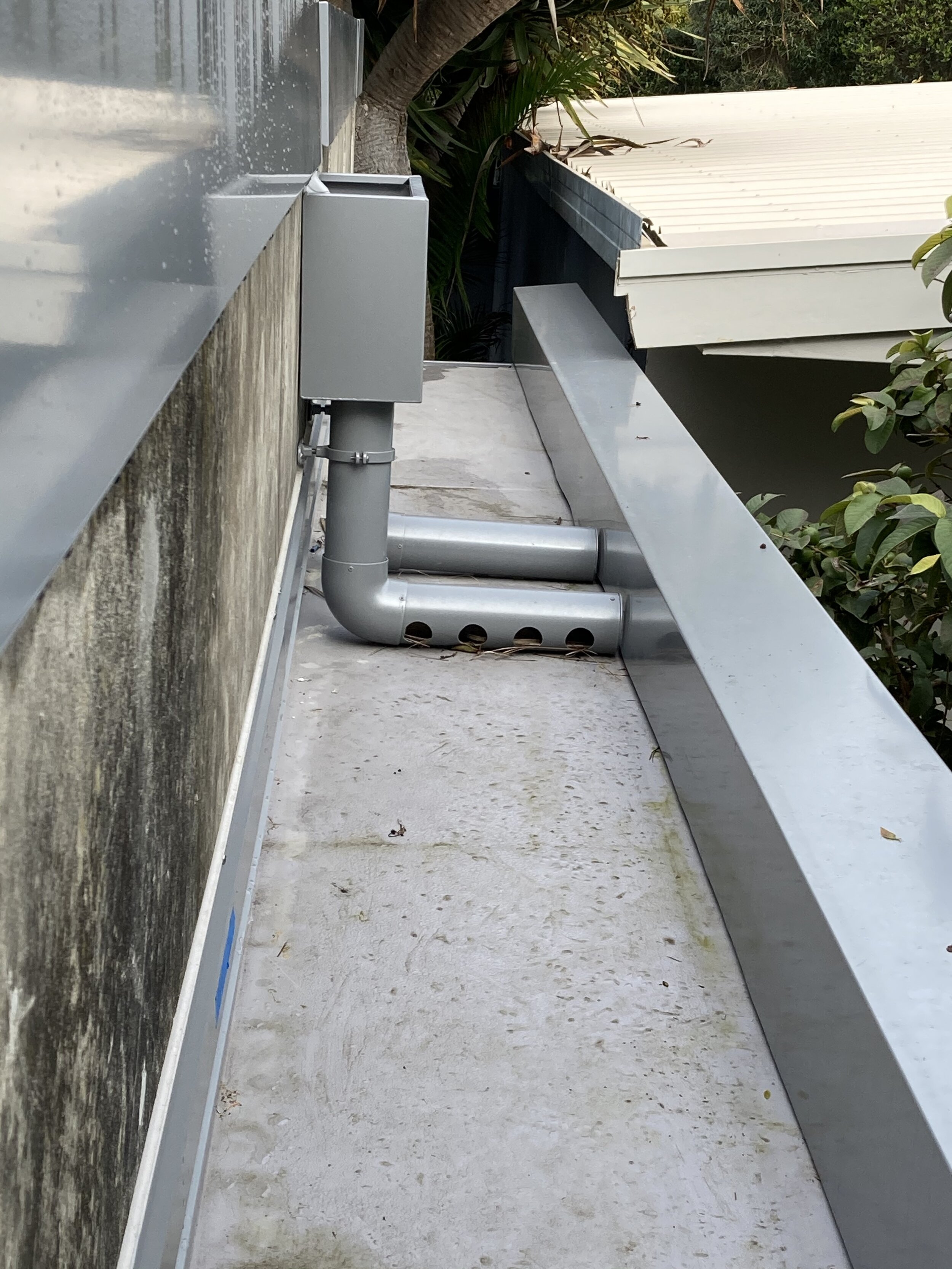

EF-80 Downpipes Image Gallery
Technical Information & Downloads

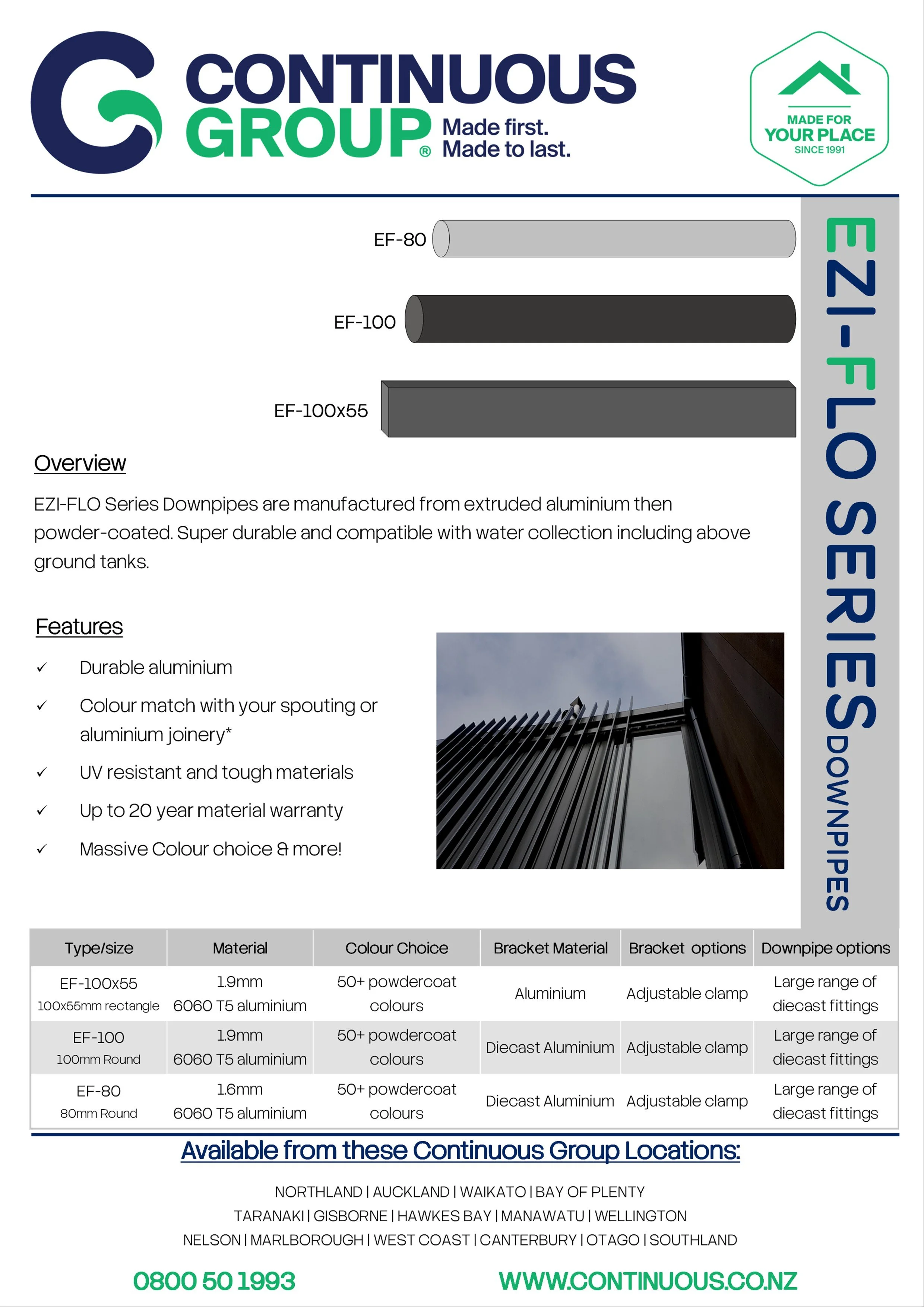

EZI-FLO Series
Downpipe Brochure
Click to view and download.
EZI-FLO Series
Specification Sheet
Click to view and download
EZI-FLO Series Combined
Brochure & Spec Sheet
Click to view and download.
